BZ Zentrix™ Nucleic acid Extractor

Home PRODUCT BZ Zentrix™ Nucleic acid Extractor

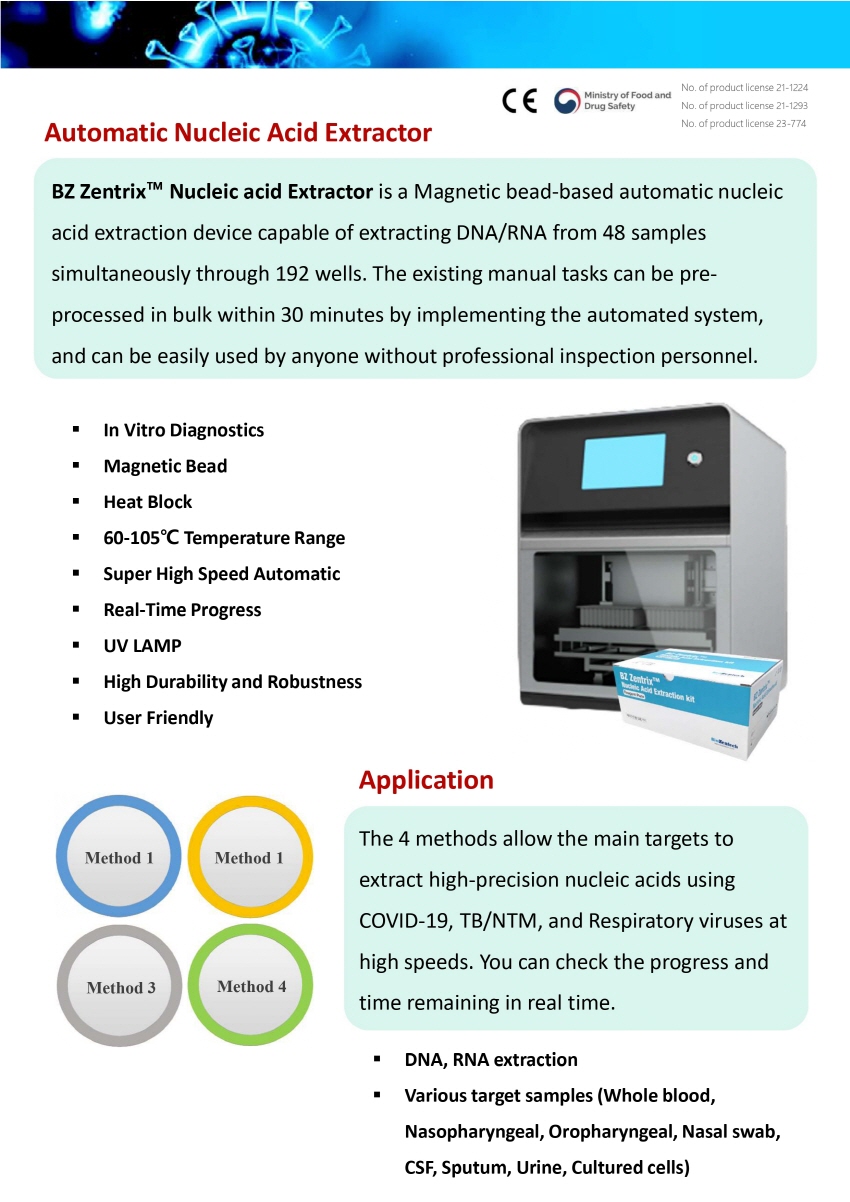

BZ Zentrix™ Nucleic acid Extractor is a Magnetic bead-based automatic nucleic acid extraction device capable of extracting DNA/RNA from 48 samples simultaneously through 192 wells. The existing manual tasks can be pre-processed in bulk within 30 minutes by implementing the automated system, and can be easily used by anyone without professional inspection personnel.

주요 기능
- In Vitro Diagnostics
- Magnetic bead
- Heat block
- 60-105℃ temperature range
- Superhigh speed Automatic
- UV LAMP
- High durability and robustness
- User friendly

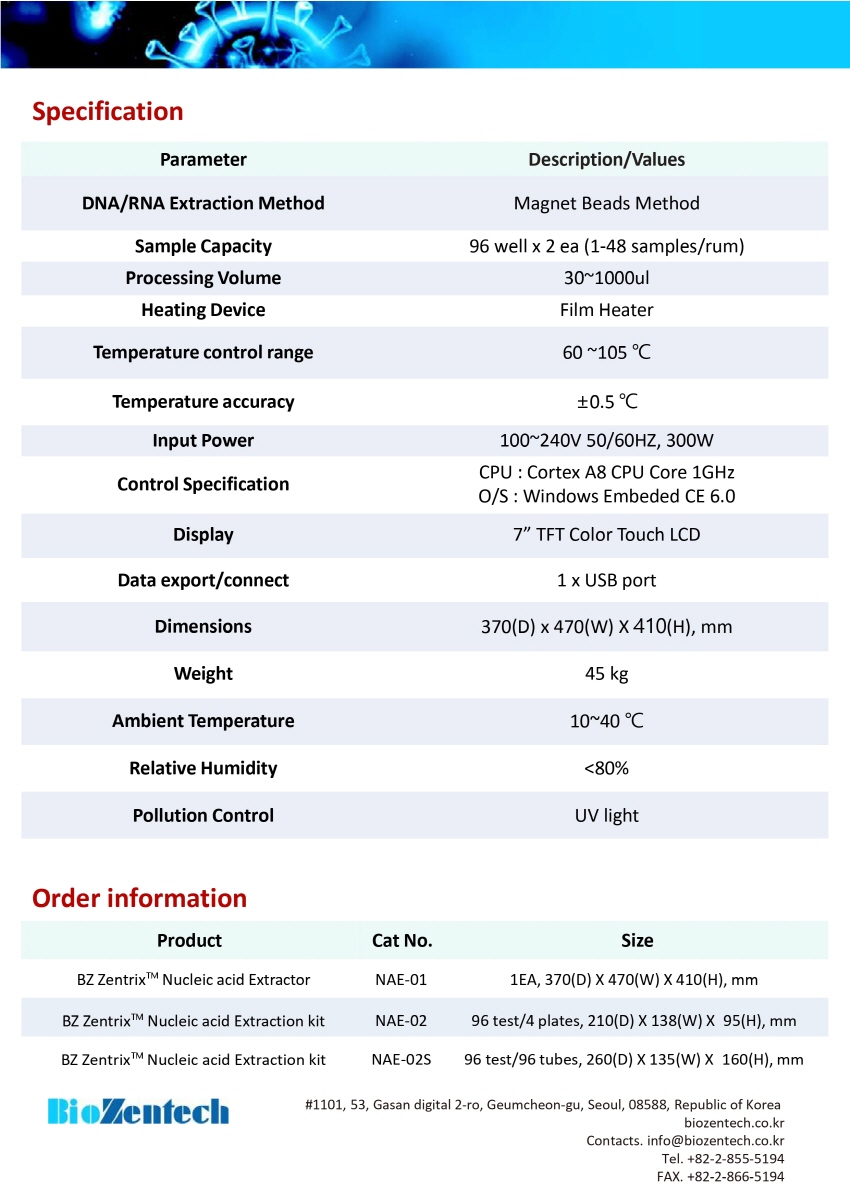

Specification
DNA/RNA Extraction Method Magnet Beads Method
Sample Capacity 192 wells (96 well x 2 ea) / 1-48 samples per run
Processing Volume 30~1000μℓ
Heating Device Film Heater
Temperature control range 60 ~105 ℃
Temperature accuracy ±0.5 ℃
Input Power 100~240V 50/60HZ Maximum 300W
Control Specification CPU : Cortex A8 CPU Core 1GHz
O/S : Windows Embeded CE 6.0
Display 7” TFT Color Touch LCD
Data export/connect 1 x USB port
Dimensions 370(D) x 470(W) X 530(H), mm
Weight 45 kg
Ambient Temperature 10~40 ℃
Relative Humidity <80%
Pollution Control UV light
